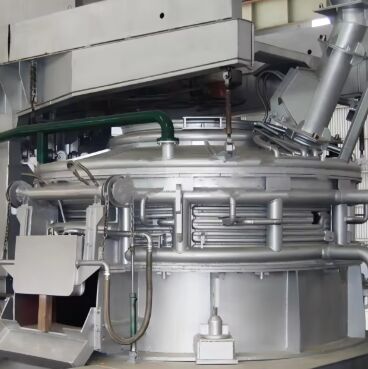

Eco-friendly Electric Arc Steel Smelting Furnace

  • Eco-friendly Electric Arc Steel Smelting Furnace
Plaats van herkomst China
Merknaam Shaanxi Chengda
Certificering ISO 9001
Modelnummer Onderhandelen op basis van de verwerkingscapaciteit van de apparatuur
Min. bestelaantal 1 eenheid
Prijs The price will be negotiated based on the technical requirements and supply scope of Party A
Verpakking Details Bespreken volgens de specifieke vereisten van partij A
Levertijd 2 maanden
Betalingscondities L/C, T/T, Western Union
Levering vermogen Voltooiing van de productieketen, tijdige levering en naleving van kwaliteitsnormen

Neem contact met me op voor gratis monsters en coupons.

WatAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Als u zich zorgen maakt, bieden we 24-uurs online hulp.

x
Productdetails
Markeren

eco-friendly steel smelting furnace

,

electric arc steel furnace

,

steelmaking equipment with warranty
Laat een bericht achter
Productomschrijving
The electrice arc furnace for steel-making is a special purpose equipment that makes ordinary steel, quality carbon steel alloy steel and non-corrosive steel with electric arc as heat source and scrap steel (iron) as raw material.
Features
1.Type:turning and opening the furnace cover and loading from top. 2.Adopting energy saving type heavy current flow line structure with large section water-cooled cable, water-cooled copper tube, water-cooled compensator as well as three-dimensional equilateral triangle layout.
3.Adopting moment motor type automatic regulator for electrode positioning,capable of both manual and automatic performance. 4.Adopting hydraulic transmission for both furnace body tilting and furance cover lifting;integrated block type hydraulic valves. 5.Adopting programmable Logic controller (PLC)for electic control. 6.Adopting pressure and water temperature monitoring for cooling water system.User shall set up an elevated water tank to prevent power cut accident.
7.Adopting pneumatic mode for both furance door opening /closing and electrode gripping.
Specification
Model
Furnace enclosure inner diameter
(mm)
Rate capacity/Max capacity (ton)
Furnace transformer
Reactor power
(KVA)
Electrode pitch circle diameter
Electrode diameter(mm)
Rated power
(KVA)
Secondary voltage
(V)

HX-0.5
2000
0.5/1
630
200-98
120
500
150
HX-1.5
2200
1.5/3
1250
210-104
200
650
200
HX-3
2600
3/8
2200
210-104
250
750
250
HX-5
3200
5/12
3200
221-110
320
850
300
HX-10
3500
10/16
5000
240-121
360
1000
350
6300
260-139
360
HX-15
3700
15/20
6300
260-139
340
1000
350
9000
260-139
HX-20
4000/
4200
20/32
9000
260-139
/
1000
350
12500
340-195
/
1050
400
16000
375-200
/
1050
400
HX-30
4600
30/45
16000
375-200
/
1100
450
25000
570-350
4000
1100
450
32000
650-350
6800
1100
450
HX-50
5000
50/60
25000
570-350
4000
1100
450
32000
650-350
6800
1100
450
35000
670-370
7800
1100
450
HX-80
5800
85/95
35000
650-350
6800
1100
450
40000
690-390
8500
1250
500
50000
800-500
9800
1300
500
HX-100
6200
100/120
35000
670-520-370
7800
1100
450
50000
800-650-340
9800
1300
500
63000
920-720-480
13000
1350
600


Eco-friendly Electric Arc Steel Smelting Furnace 0


Key attributes


type
Arc Furnace
voltage
10KVA
usage
Melting Furnace
key selling points
Energy Saving
warranty
1 Year
core components
PLC, Motor, Pump
machinery test report
Provided
video outgoing-inspection
Provided
place of origin
Shaanxi, China
weight (t)
50
brand name
HAN
dimension(l*w*h)
Customization Size
Keyword
Melting Funace
Heat Source
Electric Arc
Melting Material
Scrap Steel
Final product
Quality Carbon Steel
Raw material
Scrap Steel Iron
Feature
Energy Saving
Application
Steel making
Capacity
50ton
Furnace type
Top Loading
Product Name
Electric Arc Furnace


FAQ
Q1: Are you trading company or manufacturer?
A: We are manufacturer.
Q2: How long is your delivery time?
A: Generally it is 60 days, it is according to quantity requires.
Q3: What is the term of payment?
A: Payment <=1000USD,100%in advance. Payment>=1000USD,30% T/T in advance, balance before shipment.


lf you are interested in this equipment, please don't hesitate to contact us!

lf the machine is not suitable for your plant, please e-mail us the following information:

1. What's the quality standard of billet do you want to casting? ls it common carbon steel or low carbon steel?
2. What's the billet size and length?
3. Do you have melting furnace? lf yes, how many tons of furnace with how many quantity?
4. What's the capacity per hour? According to your information, we will offer high efficiency design and best price for it.
