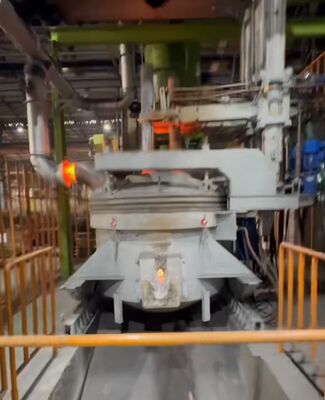

Introduction of DC Electric Arc Furnace — Special Steel Smelting Electric Arc Furnace

Core Working Principle

1. Power Conversion: Three‑phase AC is rectified into stable DC by a power supply system.
2. Arc Generation: A stable arc forms between the single top graphite cathode and the furnace‑bottom anode, heating the charge to over 3,000°C.
3. Melting & Refining: The high‑temperature arc rapidly melts scrap or alloy materials; alloying and impurity removal are performed to adjust composition and improve steel quality.
4. Molten Pool Stirring: The directional DC current creates strong electromagnetic stirring, ensuring uniform temperature and composition.

Key Structural Features

• Single Top Electrode: Only one large graphite electrode is used, simplifying the electrode system and lowering consumption.
• Bottom Electrode: The furnace bottom is equipped with a conductive anode (e.g., metal contact pins or MgO‑C refractory), which is the defining feature of DC EAF.
• Rectifier Unit: Converts AC to DC, enabling stable arc operation.
• Furnace Body: Refractory lining optimized for high temperature and corrosion resistance, with bottom gas‑stirring devices to enhance refining effects.

Advantages for Special Steel Smelting

1. Superior Steel Quality

• Stable Arc & Uniform Heating: Minimizes local overheating, reduces segregation, and improves purity—critical for bearing steel, die steel, and stainless steel.
• Strong Stirring: Promotes uniform composition and efficient deoxidation/desulfurization, meeting strict special steel standards.

2. High Efficiency & Low Consumption

• Lower Electrode Consumption: ~50% less than AC EAF, cutting operating costs.
• Energy Saving: Higher power factor and reduced grid loss; typical energy consumption 250–300 kWh/t.
• Shorter Cycle: Faster melting and refining, with tap‑to‑tap time often under 30 minutes.

3. Stable Operation & Environmental Benefits

• Low Grid Impact: Small current/voltage fluctuations, less flicker, and better power‑grid compatibility.
• Reduced Lining Erosion: Uniform heat distribution extends furnace life by ~30%.
• Lower Noise & Emissions: Quieter operation and better flue‑gas control.

Application in Special Steel Production

• Bearing Steel: High cleanliness, uniform hardness, and fatigue resistance.
• Die Steel: Excellent hardness, toughness, and thermal stability.
• Stainless Steel: Efficient chromium/nickel alloying and low carbon control.
• High‑Speed Tool Steel: Precise composition and high temperature performance.
• Special Alloys: Nickel‑based, titanium, and heat‑resistant alloys.

Typical Smelting Process

1. Preparations: Furnace patching, bottom electrode inspection, and raw material preparation.
2. Charging: Scrap, alloys, and slagging agents are loaded in batches.
3. Melting: DC power is applied; the arc melts the charge, with oxygen/fuel assistance.
4. Oxidation Period: Oxidize impurities (P, C, Si) and remove slag.
5. Reduction & Refining: Add deoxidizers and alloys; adjust composition and temperature.
6. Tapping: Molten steel is tapped into a ladle for further refining (e.g., LF, VD).

Technical Development Trend

• Flexible DC Power Supply: IGBT‑based modular power supplies improve response and stability.
• Intelligent Control: Automatic electrode regulation, process optimization, and digital monitoring.
• Green & Low‑Carbon: Scrap preheating, waste‑heat recovery, and low‑emission technologies.
• Large‑Scale & Specialization: Larger capacities (≥100 t) and custom designs for high‑end special steels.
